| Current Category£ºMini Circuit Breaker, Moulded Case Circuit Breaker |
|

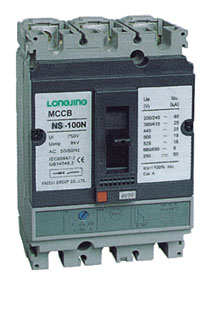

| NS Series Moulded Case Circuit Breaker |
|
|
|
 Product Description |
NS series moulded case circuit breaker is one of breaker which adopts international advanced design, manufacture technology to develop. The rated insulating voltage is 750V, suitable for AC 50Hz(60Hz), rated working voltage 690V or below, rated working current is 12.5A to 1250A of circuit and used in distributing electric energy, and non-frequent breaking in the normal conditions, protecting the current& equipment from overload & under voltage, circuit breaker with rated frame current 400A or below, can be used in mousecage motor`s non-frequent start, breaking during working, protecting motor from overload, short circuit & under voltage, the product conforms to IEC60947-2 standard.
|
| Downloads |
 Click to download product details (PDF format)
Download Tip£º
1¡¢Product details for PDF documents£»
2¡¢Download if it can not open a document, please install the PDF reader£»
3¡¢When downloading recommended to download tools or Save Target As¡£
 PDF browsing tools: Click to download£º |
|
|
|
|
 |
| | | | | | |
